Awaiting product image

Soft seated, DIN flanged ball valve, long pattern, floating

Categories: ,

Additional information

Marken

JC Valves
Industrie

Energy, Petroleum, chemical, Plant engineering & construction, Pulp & paper, Steel, Sugar, starch, Water, waste water
Anwendung

High pressure, Hydropower, Low temperature/ cryogenic, Steam and energy, Water & waste water
Nenndruck

PN, 63, 100
Betriebstemperatur

Low temperature, Standard temperature

Related products

    Plastic ball valve

    Type Serie EXTREME (CEPEX)
    Pressure: '6 / 10 / 16
    Nominal size: 10 - 100

    The plastic CEPEX ball valves can be used both to shut off and control liquids.

    The ball valves made entirely of plastic bring advantages in terms of resistance to chemicals. The EXTREME series is designed for special requirements and can therefore be used in steel plants, chemical plants or the oil industry.

    The plastic ball valves can be operated either manually or also automatically. The model is available in a wide variety of plastics (PVC-U, CPVC, PP-H, PVDF and ABS).

    Add Bookmark

    ANSI cast trunnion design, flanged ball valve, soft/metal seated

    Type 2515 / 2530 (JC Valves)
    Pressure: 50bar
    Nominal size: 2" - 16"
    "The JC Valves ball valve type 2515 and 2530 are flanged cast trunnion ball valves according to ANSI Class 150 or 300 respectively. They can be designed as both soft and metal seated valves. A large selection of materials makes the ball valve even more flexible. The standard version of the ball valve includes a anti-blow out stem, an antistatic device, a pressure balancing cavity hole and a ""live loaded"" packing. With a wide range of approvals (Fire Safe, Fugitive Emission, ATEX, TRCU, CRN, SIL 3, and many others), it can be used in virtually all industries. "
    Add Bookmark

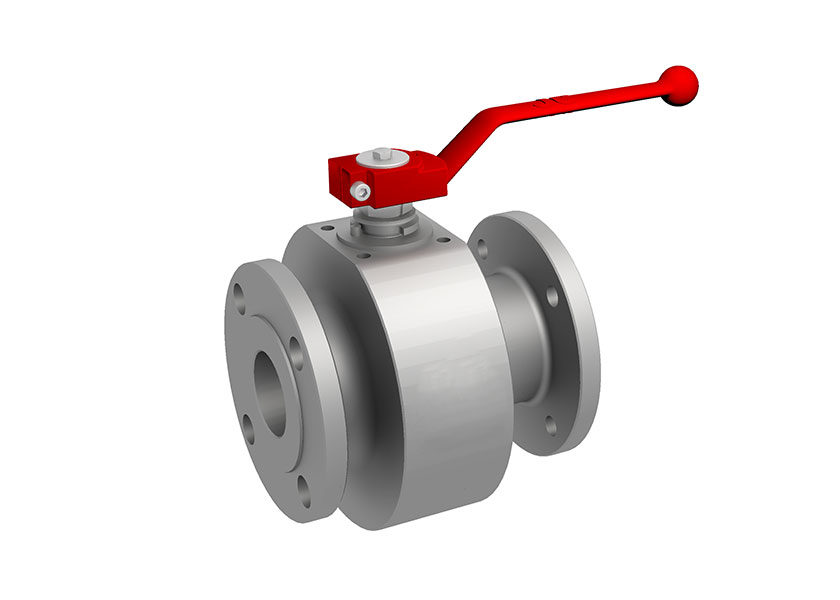

    Soft seated, ANSI flanged ball valve, floating

    Type 515 / 515B / 530 / 530B (JC Valves)
    Pressure: 50bar
    Nominal size: 1/2" - 8"
    "The JC Valves ball valve type 515 / 515B / 530 / 530B is a floating ball valve according to ANSI. It is also a flanged ball valve for ANSI piping. The standard version of the ball valve includes a anti-blow out stem, an antistatic device, a pressure balancing cavity hole and a ""live loaded"" packing. A large selection of materials, which makes the ball valve even more flexible, is another advantage of the JC Valves ball valves. With a wide range of approvals (Fire Safe, Fugitive Emission, ATEX, TRCU, CRN, SIL 3, and many others), it can be used in virtually all industries. "
    Add Bookmark

    3-way ball valve, soft seated, compact design

    Type Typ FT4 / FT6 / FZ4 / FZ6 (Adler)
    Pressure: '10 - 64 / 150 - 600
    Nominal size: 8 - 150

    Due to its compact design, the Adler 3-way ball valve is a space-saving variant of the flanged 3-way ball valves.

    The ball is fully bored and can be designed with an “L” or “T” bore. The valve is made of steel or stainless steel and can be produced as a wafer design ball valve or with female thread.
